500mm Cnc Cylindrical Grinder Excellent Stability Cnc Cutter Grinder

Model NO. : SGA-2550AH/ SGA-2550AHR /SGA-2550AHD

Working Style : High-speed universal

Disc Diameter : 150mm

Variable Speed : With Variable Speed

Table Size(Wxl) : 250X500(Mm)

Max. Longitudinal Travel : 560mm

Max. Cross Travel : 275mm

Max. Distance From Spindle Center to Tab : 450mm

Electro Magnetic Chuck Size : 250X500mm

Transport Package : Wood Case

Specification : CE ISO

Trademark : GNG MACHINE

Origin : China

HS Code : 84595900

Supply Ability : 10sets/month

Type : Disc Grinder

Power Source : Electricity

Object : Milling Cutter

Application : Construction

Disc(Wheel) Type : Grinding Disc

Material : Metal

Place of Origin : China

MOQ : 1 set

Price : USD 2000-50500

Packaging Details : Carton/Wooden case

Delivery Time : 30-45days

Payment Terms : T/T

Contact Now

Electric High Precision Saddle Moving Surface Grinder

Company Info.

Basic Info.

Model NO.
SGA-2550AH/ SGA-2550AHR /SGA-2550AHD
Working Style
High-speed universal
Disc Diameter
150mm
Variable Speed
With Variable Speed
Table Size(Wxl)
250X500(Mm)
Max. Longitudinal Travel
560mm
Max. Cross Travel
275mm
Max. Distance From Spindle Center to Tab
450mm
Electro Magnetic Chuck Size
250X500mm
Transport Package
Wood Case
Specification
CE ISO
Trademark
GNG MACHINE
Origin
China
HS Code
84595900
Production Capacity
100sets/Month

Product Description

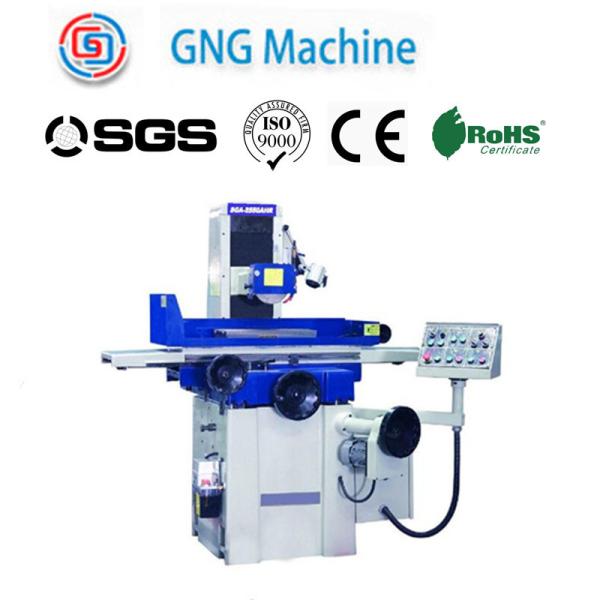

SG SGA saddle moving surface grinder SGA-2550AH SGA-2550AHR SGA-2550AHD
Item/Model Unit SGA-2550AH SGA-2550AHR SGA-2550AHD
table size(WxL) mm 250x500
max. longitudinal travel mm 560
max. cross travel mm 275
max. distance from spindle center to table mm 450
electro magnetic chuck size mm 250x500
speed of table longitudinal movement m/min #REF!
table transverse movement auto feed mm/min 0.1-8
rapid speed mm/min 990
feed of handwheel mm/div 0.02
wheelhead vertical movement auto feed mm ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)
rapid speed mm/min ---(H/AH model) / 460 (for AHR model)
feed of handwheel mm/div 0.005
grinding wheel speed rpm 2850(50Hz),3450(60Hz)
eize(ODxWxID) mm 200x20x31.75
spindle motor kw 2.2
hydranlic motor kw 0.75
cooling pump motor kw 0.04
elecating motor kw ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)
cross feed motor kw 1.04
max.loading capacity of table(include chuck) kg 180
total rated power kw 3.7
height of machine:1675mm
floor space(LxW):2300x1600(mm)
Gross weight:1800kg
package dimensions(LxWxH):2000x2100x2175(mm)
