Crank Shaft Tool Grinding Machine Sg60160sdcnc Special Purpose Grinding Machine

Certification : CE, ISO 9001

Model NO. : SG60160SD

Precision : High Precision

Condition : New

Worktable Size(mm) : Worktable Size

Floor Space(Lxw)(mm) : 4700X3000

Max Loading Capacity(with Chuck)(Kg) : 1230

Spindle Motor(Kw) : 17

Weight : 8500kg

Transport Package : Carton

Specification : CE ISO

Trademark : G&G

Origin : China

HS Code : 8458910000

Supply Ability : 10sets/month

Type : Special Purpose Grinding Machine

Processing Object : Crank Shaft

Abrasives : Grinding Wheel

Controlling Mode : CNC

Automatic Grade : Automatic

Cylindrical Grinder Type : Universal Cylindrical Grinder

Place of Origin : China

MOQ : 1 set

Price : USD 2000-50500

Packaging Details : Carton/Wooden case

Delivery Time : 30-45days

Payment Terms : T/T

Contact Now

Sg60160sdcnc Column Moving Guide Way Grinder Machine

Company Info.

Basic Info.

Model NO.

SG60160SD

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Worktable Size(mm)

Worktable Size

Floor Space(Lxw)(mm)

4700X3000

Max Loading Capacity(with Chuck)(Kg)

1230

Spindle Motor(Kw)

Weight

8500kg

Transport Package

Carton

Specification

CE ISO

Trademark

G&G

Origin

China

HS Code

8458910000

Production Capacity

200/Per Month

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 610
Max. Grinding Length: 1600
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: SGT60160SD
Voltage: 380V
Power(W): 17000
Dimension(L*W*H): 2000X2100X2175mm
Weight: 3300kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days

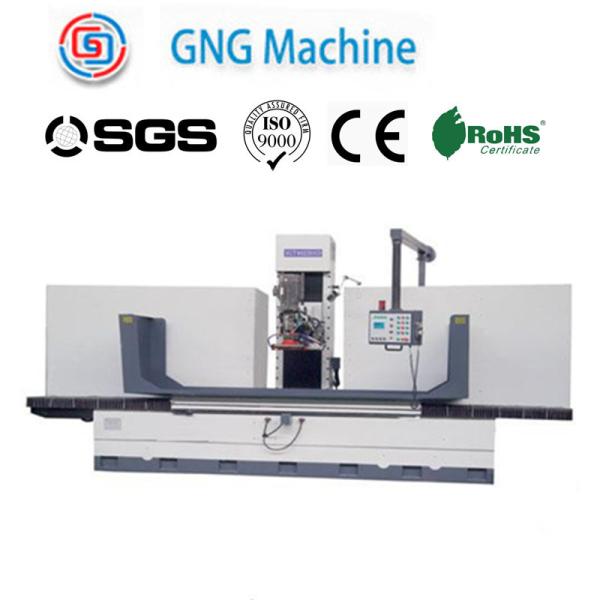

Crank Shaft Tool Grinding Machine Sg60160sdcnc Special Purpose Grinding Machine

Crank Shaft Tool Grinding Machine Sg60160sdcnc Special Purpose Grinding Machine

Specifications
Worktable sizeL610X1600
Gringding height: 600/790/850/1050
Spindle power: 5.5KW

SG SGA plc cnc column moving surface grinder
Item/Model		Unit	SG60160SD
Item/Model		Unit	SG60160CNC
table size(WxL)		mm	610X1600
max. grinding(WxL)		mm	610X1600
max. distance between spindle center line and worktable surface		mm	820/1050(925)
magnetic chuck size (optional equipment)		mm	600x800x2
speed of table longitudinal movement		m/min	5-25
wheel head cross moving	auto feed	mm/t	1-30
	rapid speed	m/min	0.05-2
	hand wheel feed	mm/div	0.005
wheel head vertical moving	auto feed	mm/t	0.005-0.05
	rapid speed	mm/min	0.05-2
	feed of handwheel	mm/div	0.005
wheel	speed	rpm	960(1450)
wheel	size(ODxWxID)	mm	500x75x305(450x75x203)
motor of spindle		kw	18.5
max. loading capacity of worktable with chuck		kg	1230
total rated power		kw	28.5
height of machine		mm	2720/2920
floor space(LxW)		mm	4700x3000
gross weight		kg	8500
